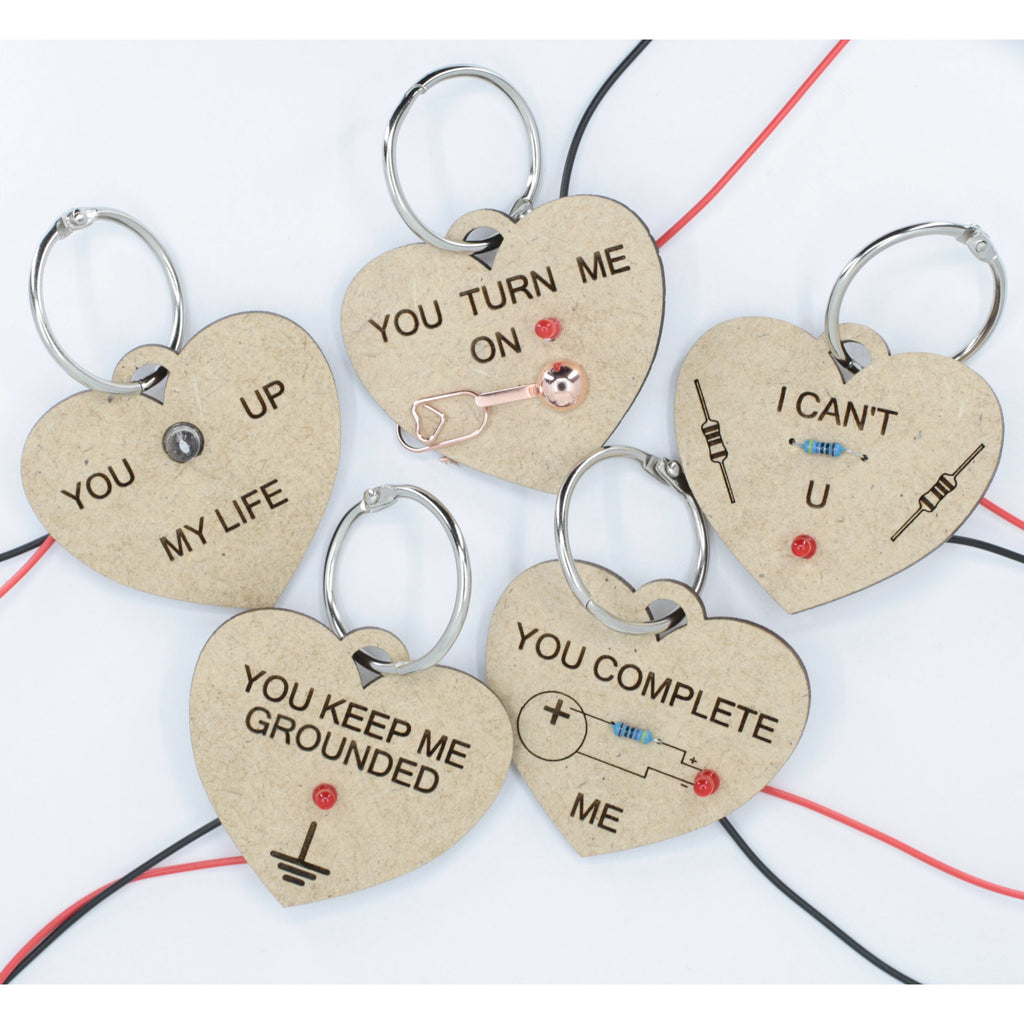

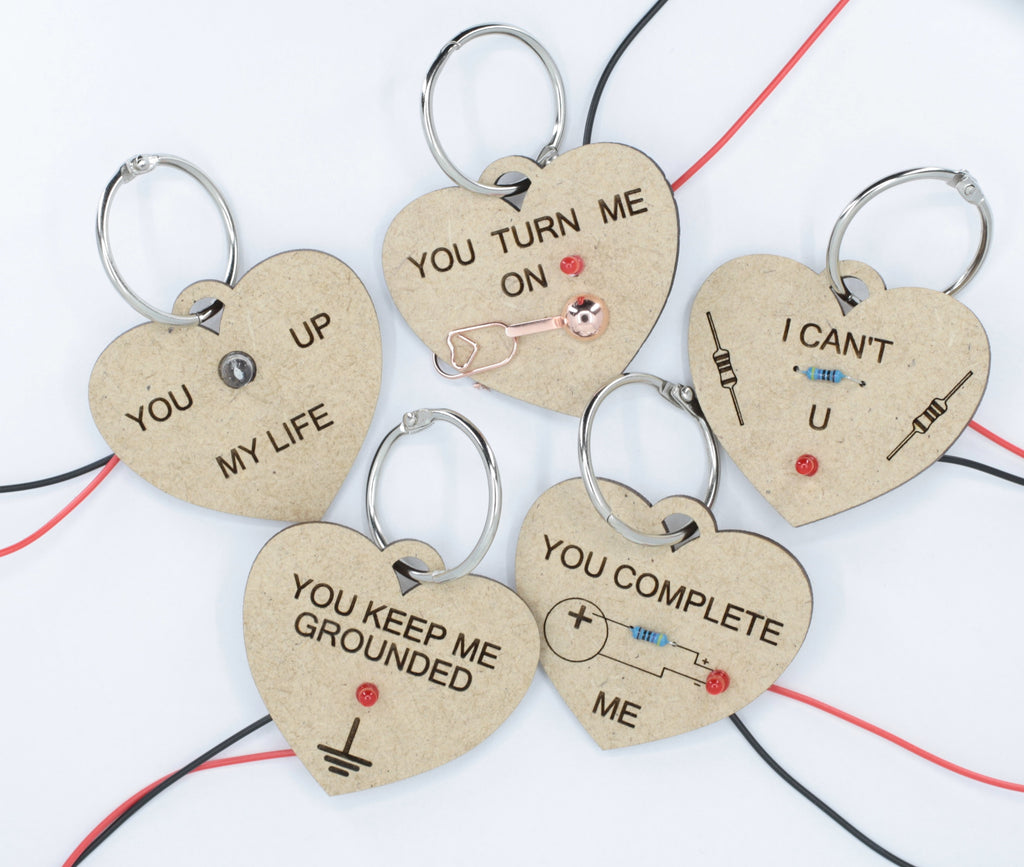

Overview
A twist on the classic chalk flavored candy hearts everyone loves! If these are too sweet be sure to checkout our PS I Hate You kit!
Kit Contents:
You Light Up My Life:
1 - Battery Holder
1 - CR2032 Battery
1 - Flat-Top 5mm RGB LED
1 - Binder Ring
1 - Heart
I Can't Resist You, You Complete Me, You Keep Me Grounded
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Self-Blinking Red LED
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
You Turn Me On:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Solid Red LED
1 - Paper Clip
1 - Brass Fastener
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart

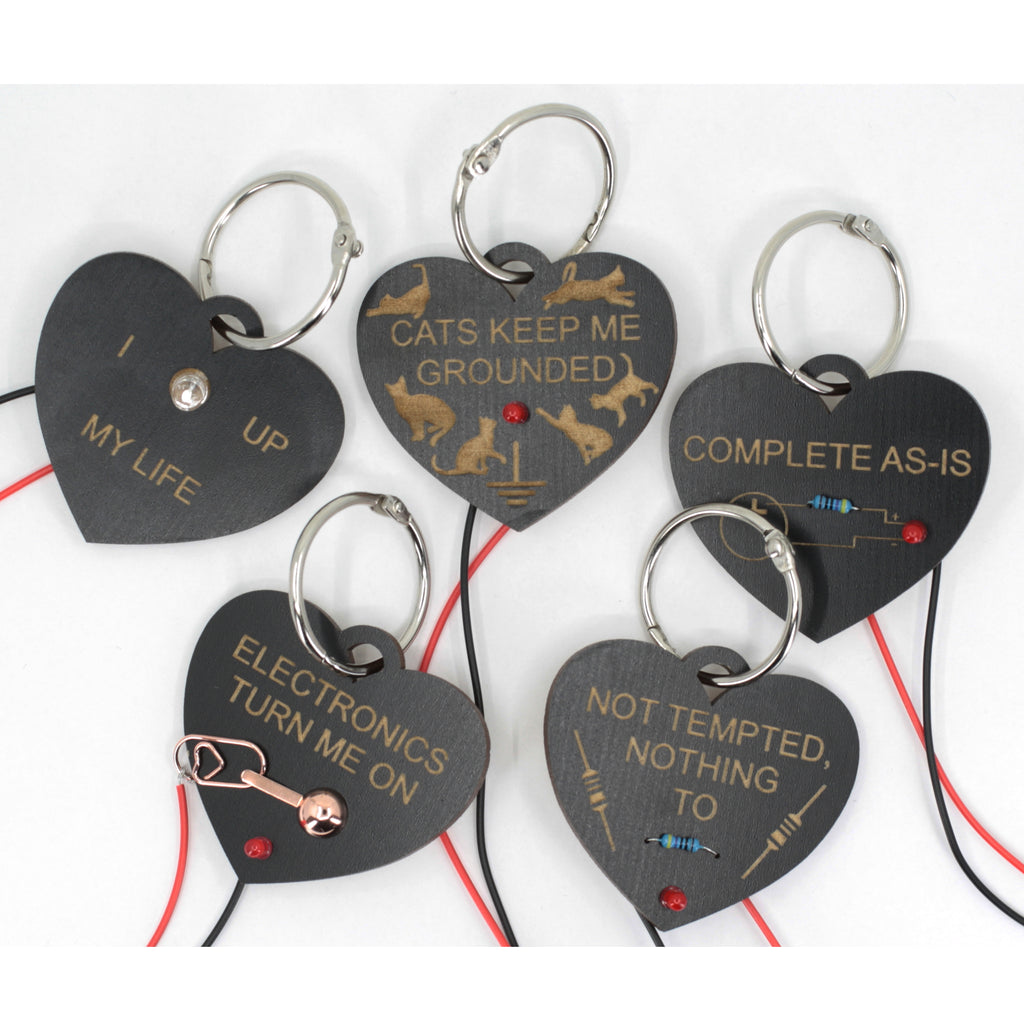

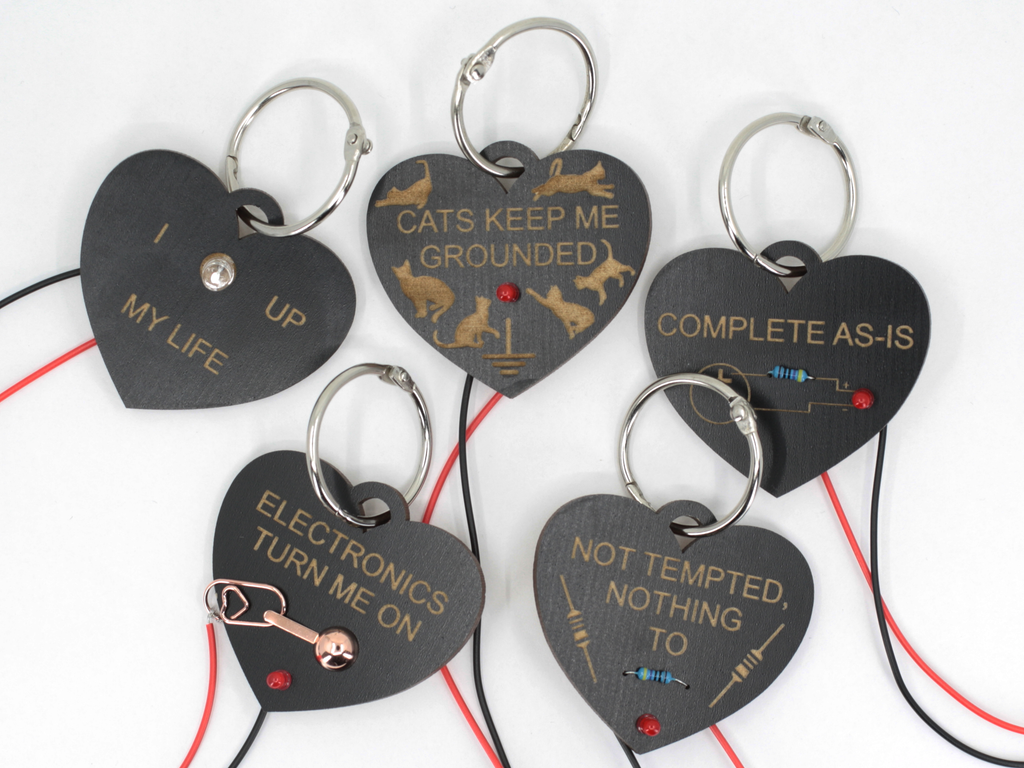

Overview
As cute as our Circuit Candy Hearts are, we just couldn't leave cute enough alone and had to create a snarky balm to all the nauseating fake Hallmark-holiday love crap. So if Valentine's Day really isn't your deal, take a moment to celebrate yourself and your cold black heart! You deserve it. And the chocolate.
Kit Contents:
I Light Up My Life:
1 - Battery Holder
1 - CR2032 Battery
1 - Flat-Top 5mm RGB LED
1 - Binder Ring
1 - Heart
Not Tempted, Nothing To Resist, Complete As-Is, Cats Keep Me Grounded:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Self-Blinking Red LED
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
Electronics Turn Me On:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Solid Red LED
1 - Paper Clip
1 - Brass Fastener
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
Unpack your Kit
Each kit has the following items included:
1 - Battery Holder
1 - CR2032 Battery
1 - Flat-Top 5mm RGB LED
1 - Binder Ring
1 - Heart
Place LED
Place the LED through the top of the board. Align the flat side of the LED with the flat side of the hole. Once the LED is all the way through bend the legs.
Wrap the Battery holder to the LED
Wrap the red wire around the long leg of the LED. Then bend the LED leg back over capturing the battery wire. Repeat those steps with the black wire on the short leg. (Optional step is to cut off excess wire with wire cutters)
Attach the Binder Ring
Wrap the resistor around the long leg of the LED closest to the screw. then wrap the red wire around the same leg. Once both are attached bend the leg over to secure. Wrap the other end of the red wire to the long leg of the other LED. Once wire is attached bend leg over to secure.
Place Battery in Battery Holder & Turn On!
The Positive side of the batter should be facing up when placed in the battery holder.
Unpack your Kit
Each kit has the following items included:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Red LED
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
Place Resistor & LED
Bend the resistor and place in the top holes. Once the resistor is through the board bend the legs. Place the LED in the bottom holes. It is easiest to have the long leg going through the top hole and the short leg going through the bottom hole.
Connect the Resistor to the LED
Twist together one leg of the resistor to the long leg of the LED. Once twisted together fold in half to secure.
Attach the Battery Holder
Pull the insulation off the end of the wires. You should see a cut in the insulation, pull from there to expose wires.
Wrap the red wire on the battery holder around the other leg of the resistor. Then fold in half to secure. Wrap the black wire of the battery holder around the short leg of the LED. Bend in half to secure. (Optional step is to cut off excess wire with wire cutters)
Attach Binder Ring
Place Battery in Battery Holder & Turn On!
The Positive side of the batter should be facing up when placed in the battery holder.
Unpack your Kit
Each kit has the following items included:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Red LED
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
Place LED & Connect Resistor
Place the LED through the holes. We suggest putting the Long leg through the top hole and the short leg through the bottom hole. Once the LED is through the board, bend the legs. Wrap one leg of the resistor around the long leg of the LED. Then fold the LED leg in half to secure.
Attach the Battery Holder
Pull the insulation off the end of the wires. You should see a cut in the insulation, pull from there to expose wires.
Wrap the red wire on the battery holder around the other leg of the resistor. Then fold in half to secure. Wrap the black wire of the battery holder around the short leg of the LED. Bend in half to secure. (Optional step is to cut off excess wire with wire cutters)
Attach the Binder Ring
Place Battery in Battery Holder & Turn On!
The Positive side of the batter should be facing up when placed in the battery holder.
Unpack your Kit
Each kit has the following items included:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Red LED
1 - 470 ohm Resistor
1 - Binder Ring
1 - Heart
Place Resistor & LED
Bend the resistor and place in the holes. Once the resistor is through the board bend the legs. Place the LED in the holes on the right. Follow the + and - symbols on the circuit. The long LED leg should go through the top and the short leg should go through the bottom.
Connect the resistor to the LED.
Twit together one leg of the resistor to the long leg of the LED. Once twisted together fold in half to secure.
Attach the Battery Holder
Pull the insulation off the end of the wires. You should see a cut in the insulation, pull from there to expose wires.
Wrap the red wire on the battery holder around the other leg of the resistor. Then fold in half to secure. Wrap the black wire of the battery holder around the short leg of the LED. Bend in half to secure. (Optional step is to cut off excess wire with wire cutters)
Attach the Binder Ring
Place Battery in Battery Holder & Turn On!
The Positive side of the batter should be facing up when placed in the battery holder.
Unpack your Kit
Each kit has the following items included:
1 - Battery Holder
1 - CR2032 Battery
1 - 3mm Red LED
1 - 470 ohm Resistor
1 - Paper Clip
1 - Fastener
1 - Binder Ring
1 - Heart
Place Fastener and LED
Bend one leg of the fastener and insert the unbent one through the board. Place the LED through the holes. The long leg goes through the bottom hole and the short leg goes through the top hole. Bend legs once its through the board.
Place resistor
Wrap one leg of the resistor around the fastener leg. Bend in half to secure. (If your having difficulty bending the fastener in half you can use needle nose pliers.) Then wrap the other leg of the resistor around the long leg of the LED (this should be the leg closest to the fastener). Bend LED leg in half to secure.
Attach the Battery Holder
Pull the insulation off the end of the wires. You should see a cut in the insulation, pull from there to expose wires.
Wrap the black wire around the short leg of the LED. Bend in half to secure. Wrap the red wire around the paper clip. (Optional step is to cut off excess wire with wire cutters)
Attach Paper Clip
Slide the paper clip onto the board and position by the fastener tab. Ben the fastener tab up so the paper clip and tab are not making contact.
Attach Binder Ring
Insert Battery & Turn On!
Once the battery is inserted and the battery holder is turned on, press down on the tab making contact with the paper clip. The LED should light up!
