FUnicorn Header Guide


A brilliant arduino-compatible way to tell people off

It's a unicorn with a special message.  The base kit activates the message by touching the unicorn, and needs to be plugged in to work (you'll need to provide your own USB power or 5-12V power supply).

The base kit includes:
- The majestic FUnicorn circuit board
- A piece of dark smoked acrylic to obscure the LEDs when unlit
- A cardboard stand
- A beautiful rainbow USB cord
- Stickers

The full kit includes:
- Everything in the base kit
- A Big Red Button kit (everything you need to add a large arcade button)
- A battery cable, 9V battery not included
A Distance Sensor kit (distance sensor, cables, and stand)
- Headers for the arduino shield pattern
- An FUnicorn magnet and more stickers

The code that ships with the FUnicorn activates the message by either touching the unicorn or pressing a button (provide your own or get the full kit).  It can be put into a low power mode for operating off of battery power by pressing and holding the button for the duration of one of the message cycles.  The message cycles through 5 different fun blinking patterns.

I originally made it as a white elephant gift exchange gag, but thought that this really had to exist in the world as a thing people could buy.  So I made it arduino-compatible and developed libraries for it, and added a shield pattern to the back.  I don't know about you, but I'm much more interested in learning new skills when a project speaks to me, so I'm hoping this will inspire people to learn how to do basic embedded programming in the Arduino IDE.

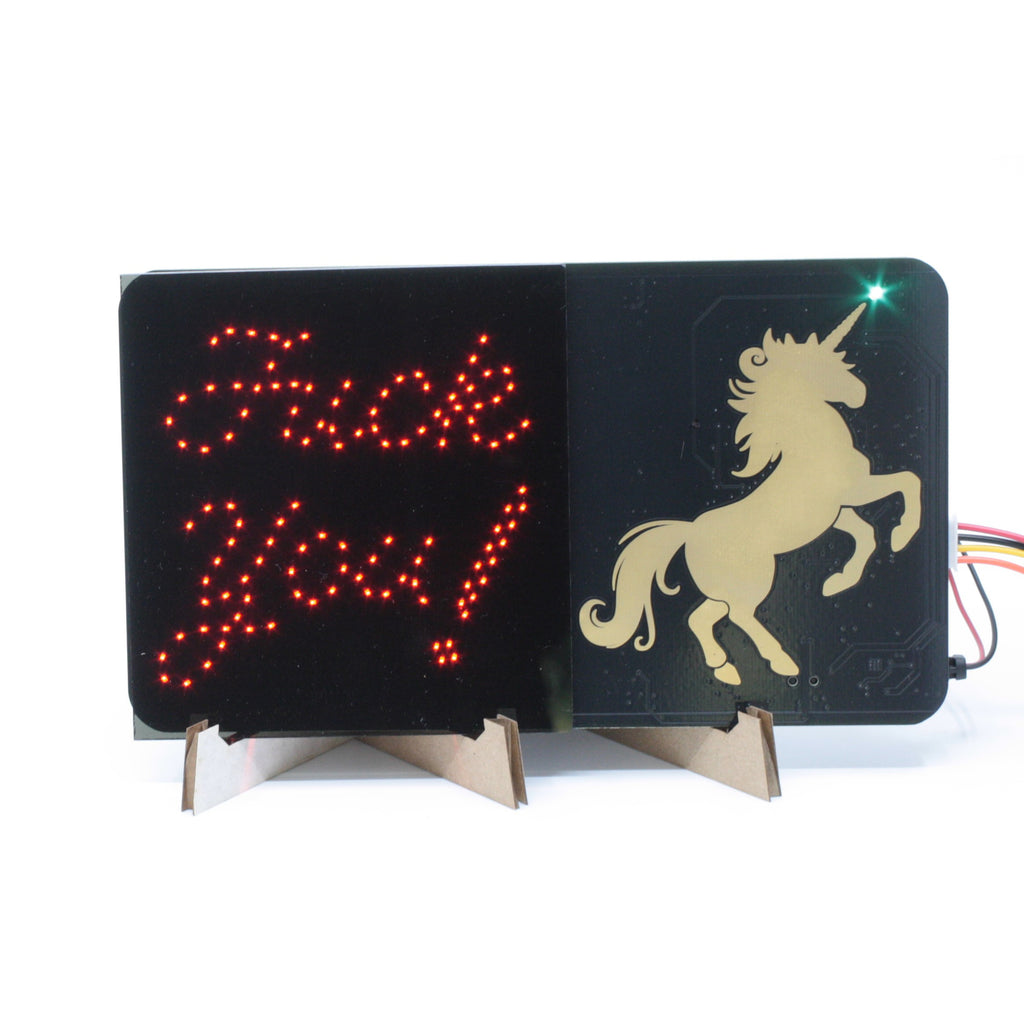

It's a pretty big board at 4" x 7", a nice size to proudly display on your desk.  It has a majestic unicorn on it with **real gold** plating.  There's an unusual cyan-colored LED on the tip of its horn that adds to the magic.  There are 120 red LEDs that spell out...the thing that it says... in cursive.  So don't worry, your kids probably won't be able to read it anyway.  There's a custom-designed cardboard stand that also holds a piece of smoked acrylic in front of its special message, so it's hidden until activated.  And I found amazing rainbow USB cables, which really tie it all together.  It's also completely made in the USA.  This is also an explanation as to why it's not cheaper.  The size of the board, the number of LEDs, and the fact that it's US-made in a relatively small quantity make it cost more.

There are 120 LEDs soldered in place to spell out its beautiful message in classy-ass cursive.  Although it's a one-trick pony and you can't change what it says, the possibilities of how to trigger the message are endless.  There's an arduino shield pattern on the back, so you can solder on the headers (or wires) and add practically any sensor to it.  Want to make a "6 feet, mofos" sign?  Add a distance sensor and/or a motion detector.  Want to tell someone they're being too loud?  Add a microphone.  Want to simply keep track of how many times you've told people off?  Add an LCD shield.



Assembly & Usage:

The Alpenglow Industries FUnicorn is a fun way to share a special message, and the Full Kit adds to the fun with a big F’ing button, for remote detonation of your F bombs. But what if you want to make the FUnicorn your own – and create a more-than-one-trick pony? Also included in the Full Kit are user-solderable headers, so that you can add an Arduino shield and create the equine masterpiece of your dreams*!
*provided that your dreams are compatible with 3v3 I/O
In order to not perforate the FUnicorn’s majestic form on the front of the board, we used surface mount headers rather than through-hole. This cosmetic decision means that you may find the headers harder to solder than other Arduinos you may have come across in the past, but, you can do it! If you believe in FUnicorns, we believe in you!
We recommend using any shield you may have handy to hold everything in place. Tack opposite corners to maintain alignment, then work your way along the rest of the outer pins. If everything is looking good, go ahead and carefully remove the shield. Remember at this point that the headers are only half-soldered, so if you yank it off with full Clydesdale strength, there's a chance that the headers – and even the pads that they are attached to – could come off with it, causing permanent damage. So please wiggle gently! With the shield out of the way, you are now clear to complete the interior pins (below, left). You may experience some balling or other flow issues – feel free to reflow any problematic areas. At this point, your board should look like the below right:
To confirm alignment, go ahead and reattach the shield, verifying that all of the pins are correctly seated and insertion/removal does not require an unreasonable amount of force. At this point, you are ready to put the U in FUnicorn, and give your idea wings (which would perhaps make it an FAlicorn?!)!
